Suitable for a Right Hand Cable Clutch ONLY

MUST Use a 10" (254mm) Diameter Clutch Plate

It is HIGHLY Recommended that You Purchase the Thrust Bearing and Carrier as well as the Throwout Fork to make this Kit Work. Can be Purchased Below

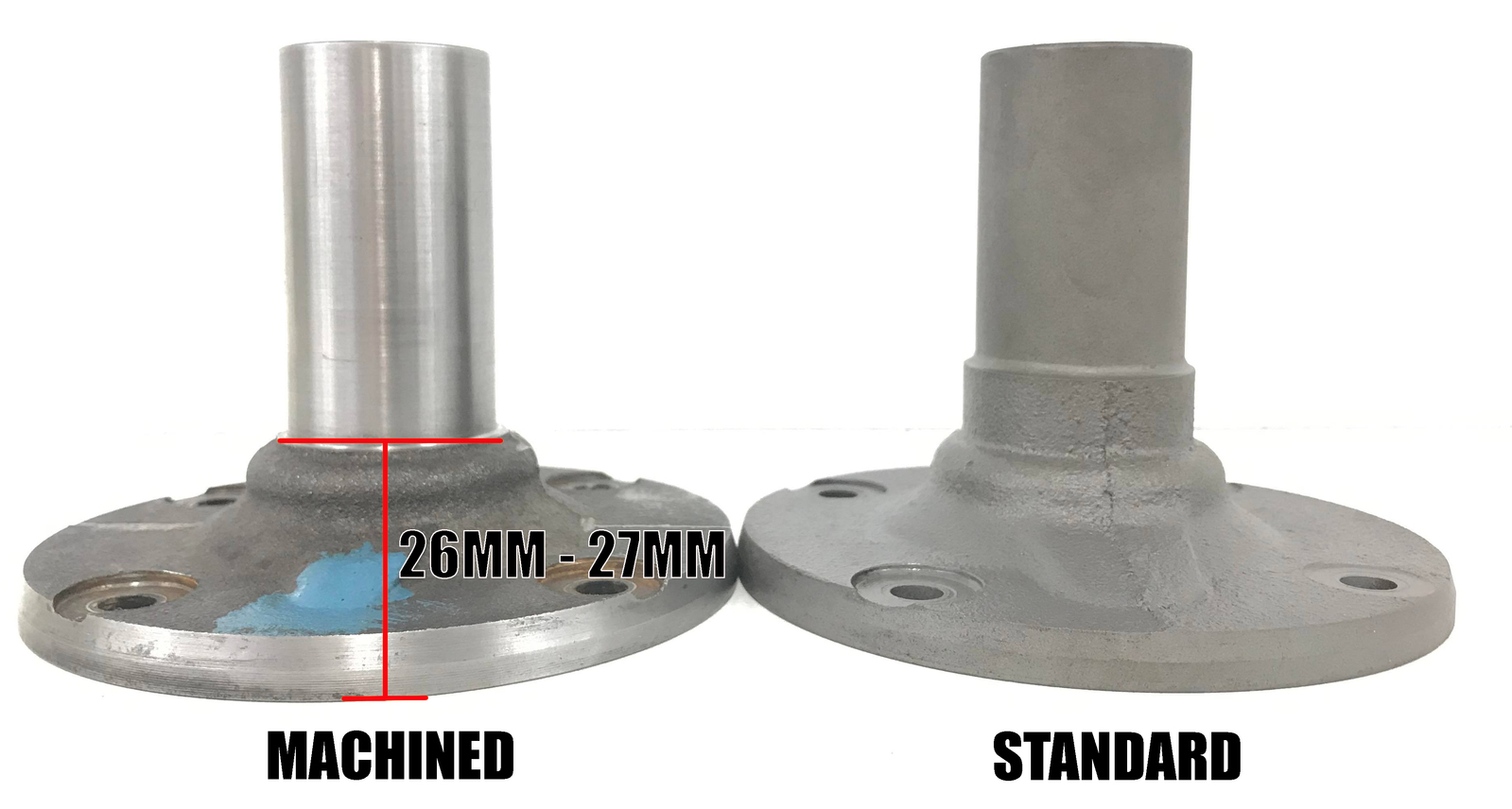

The Nose Cone needs to be Machined as per Images, we offer this Service ($50.00) as a Changeover or You Can get it get it done Yourself

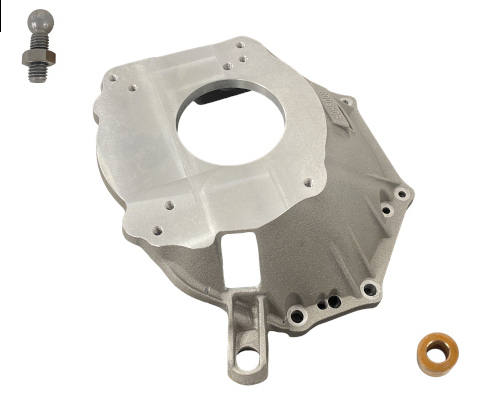

Kit Includes
Part Part # Qty
Bellhousing bh086 1
Pivot Ball pb01 1
Spigot Bush sb11 1
Washer washer02 4
Bolts 7/16" x 1 1/4" UNC 4
Flat Washers 7/16" 4
Spring Washers 7/16" 4



Optional Extras Available for Purchase Below
Part Part # Price
Clutch Cable Bush bush07 $25.00
Clutch Plate cp23 $160.00
Pressure Plate pplate18 $240.00
Throwout Fork tf12 $210.00
Thrust Bearing & Carrier tb14a $68.00

Suitable for a Right Hand Cable Clutch ONLY

MUST Use a 10" (254mm) Diameter Clutch Plate

It is HIGHLY Recommended that You Purchase the Thrust Bearing and Carrier as well as the Throwout Fork to make this Kit Work. Can be Purchased Below

The Nose Cone needs to be Machined as per Images, we offer this Service ($50.00) as a Changeover or You Can get it get it done Yourself

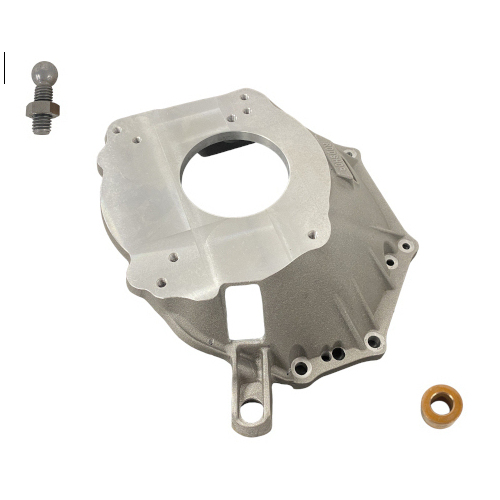

Kit Includes
Part Part # Qty
Bellhousing bh086 1
Pivot Ball pb01 1
Spigot Bush sb11 1
Washer washer02 4
Bolts 7/16" x 1 1/4" UNC 4
Flat Washers 7/16" 4
Spring Washers 7/16" 4



Optional Extras Available for Purchase Below
Part Part # Price
Clutch Cable Bush bush07 $25.00
Clutch Plate cp23 $160.00
Pressure Plate pplate18 $240.00
Throwout Fork tf12 $210.00
Thrust Bearing & Carrier tb14a $68.00
SKU bh086kitftlbbccab
Brand Castlemaine Rod Shop
Shipping Weight 7.0000kg
Shipping Width 0.520m
Shipping Height 0.170m
Shipping Length 0.520m
