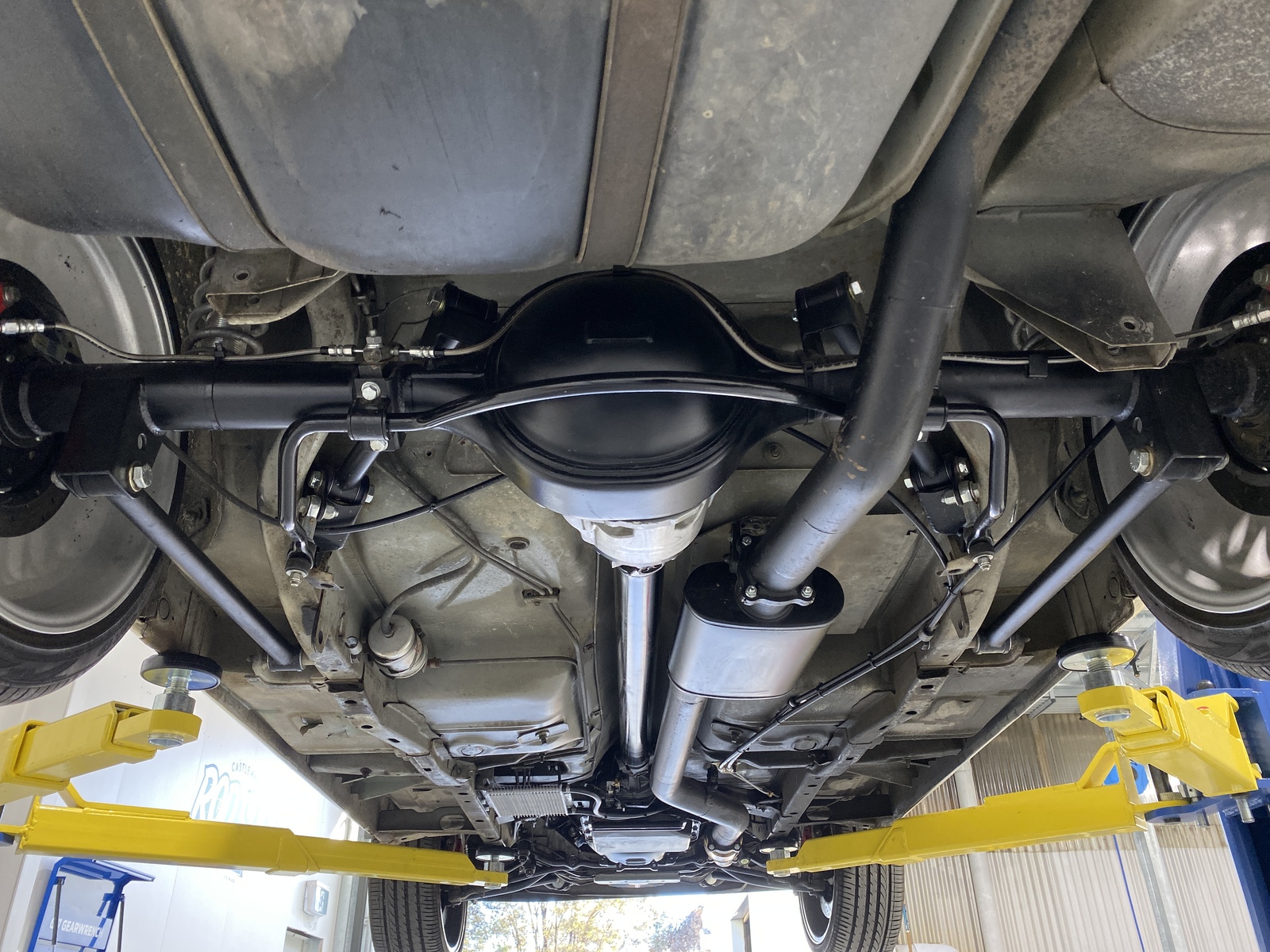

9" Diff with 4 Link Rear Suspension for XE & XF Ford's
SKU: 9dfxexf
This Product is Fabricated On-Site
Current Build time can be from 12 to 24 Weeks
PLEASE Call Us on 03 5472 2853 If this is a Concern
Mounts using all Factory Mounting Point
Nothing needs to be Drilled
Some Factory Spot Welds needs to be done on the Shocker Mounts
Factory Standard 9" XA, XB or XC Sway Bar Can be Used (Not Supplied)
A New Tailshaft will be Required
These Diff's are Rated between 800 & 900 RWHP
Full Spool Diff's are recommended for Off Road use ONLY.
Minimum and Maximum Widths are Listed Below, It is YOUR Responsibility that the Measurements ARE Correct as We DO NOT Accept Returns when the Length IS NOT the Maximum (Standard) Width
Refer to Images on How to Measure the Diff Width Correctly
Included
Fully Adjustable Viking Coilover Shocks |
USA Manufactured Axles (31 Spline), 1541 Forged Induction Heat Treated |
10mm Heavy Duty Flanges |
1350 Yoke |
5mm Thick Axle Tubes |
Ratio of Your Choice (Refer Below) |
Choice of Drum or Wilwood Disc Brakes (Refer Below) |
Suspension Mounts |
3" long 1/2" ARP Wheel Studs |
CNC Laser Cut and Bent Brackets |
Billet CNC Machined Ends |
Super Heavy Duty 6mm thick Smooth Back Housing |
Not Included
Rear Brake Lines |
Handbrake Cable |
Sway Bar |
Brake Packages
Drum - Minimum 14" Wheel Diameter | |
Calipers
Black1 PistonDust Booted |
Rotors
Diameter: 280mmWidth: |
Wilwood 280 Kit - Minimum 14" Wheel Diameter | |
Calipers
Black or Red4 PistonDust Booted |
Rotors
Diameter: 280mmWidth: 20.5mm |
Wilwood 320 Kit - Minimum 15" Wheel Diameter | |
Calipers
Black or Red4 PistonDust Booted |
Rotors
Diameter: 310mmWidth: 20.5mm |
Widths
Minimum | Maximum |
1450mm (Factory Rails or Wheel Tubs) | 1556mm (Standard) |
This Product is Fabricated On-Site
Current Build time can be from 12 to 24 Weeks
PLEASE Call Us on 03 5472 2853 If this is a Concern
Mounts using all Factory Mounting Point
Nothing needs to be Drilled
Some Factory Spot Welds needs to be done on the Shocker Mounts
Factory Standard 9" XA, XB or XC Sway Bar Can be Used (Not Supplied)
A New Tailshaft will be Required
These Diff's are Rated between 800 & 900 RWHP
Full Spool Diff's are recommended for Off Road use ONLY.
Minimum and Maximum Widths are Listed Below, It is YOUR Responsibility that the Measurements ARE Correct as We DO NOT Accept Returns when the Length IS NOT the Maximum (Standard) Width
Refer to Images on How to Measure the Diff Width Correctly
Included
Fully Adjustable Viking Coilover Shocks |
USA Manufactured Axles (31 Spline), 1541 Forged Induction Heat Treated |
10mm Heavy Duty Flanges |
1350 Yoke |
5mm Thick Axle Tubes |
Ratio of Your Choice (Refer Below) |
Choice of Drum or Wilwood Disc Brakes (Refer Below) |
Suspension Mounts |
3" long 1/2" ARP Wheel Studs |
CNC Laser Cut and Bent Brackets |
Billet CNC Machined Ends |
Super Heavy Duty 6mm thick Smooth Back Housing |
Not Included
Rear Brake Lines |
Handbrake Cable |
Sway Bar |
Brake Packages
Drum - Minimum 14" Wheel Diameter | |
Calipers
Black1 PistonDust Booted |
Rotors
Diameter: 280mmWidth: |
Wilwood 280 Kit - Minimum 14" Wheel Diameter | |
Calipers
Black or Red4 PistonDust Booted |
Rotors
Diameter: 280mmWidth: 20.5mm |
Wilwood 320 Kit - Minimum 15" Wheel Diameter | |
Calipers
Black or Red4 PistonDust Booted |
Rotors
Diameter: 310mmWidth: 20.5mm |
Widths
Minimum | Maximum |
1450mm (Factory Rails or Wheel Tubs) | 1556mm (Standard) |
This Product is Fabricated On-Site
Current Build time can be from 12 to 24 Weeks
PLEASE Call Us on 03 5472 2853 If this is a Concern
Mounts using all Factory Mounting Point
Nothing needs to be Drilled
Some Factory Spot Welds needs to be done on the Shocker Mounts
Factory Standard 9" XA, XB or XC Sway Bar Can be Used (Not Supplied)
A New Tailshaft will be Required
These Diff's are Rated between 800 & 900 RWHP
Full Spool Diff's are recommended for Off Road use ONLY.
Minimum and Maximum Widths are Listed Below, It is YOUR Responsibility that the Measurements ARE Correct as We DO NOT Accept Returns when the Length IS NOT the Maximum (Standard) Width
Refer to Images on How to Measure the Diff Width Correctly
Included
Fully Adjustable Viking Coilover Shocks |
USA Manufactured Axles (31 Spline), 1541 Forged Induction Heat Treated |
10mm Heavy Duty Flanges |
1350 Yoke |
5mm Thick Axle Tubes |
Ratio of Your Choice (Refer Below) |
Choice of Drum or Wilwood Disc Brakes (Refer Below) |
Suspension Mounts |
3" long 1/2" ARP Wheel Studs |
CNC Laser Cut and Bent Brackets |
Billet CNC Machined Ends |
Super Heavy Duty 6mm thick Smooth Back Housing |
Not Included
Rear Brake Lines |
Handbrake Cable |
Sway Bar |
Brake Packages
Drum - Minimum 14" Wheel Diameter | |
Calipers
Black1 PistonDust Booted |
Rotors
Diameter: 280mmWidth: |
Wilwood 280 Kit - Minimum 14" Wheel Diameter | |
Calipers
Black or Red4 PistonDust Booted |
Rotors
Diameter: 280mmWidth: 20.5mm |
Wilwood 320 Kit - Minimum 15" Wheel Diameter | |
Calipers
Black or Red4 PistonDust Booted |
Rotors
Diameter: 310mmWidth: 20.5mm |
Widths
Minimum | Maximum |
1450mm (Factory Rails or Wheel Tubs) | 1556mm (Standard) |
SKU | 9dfxexf |
Brand | Castlemaine Rod Shop |
Shipping Weight | 83.0000kg |
Shipping Width | 0.420m |
Shipping Height | 0.420m |
Shipping Length | 1.650m |
